Customized IP67 Push Locking Panel Mount Plug M25 Outdoor LED Loight Waterproof Cable Connectors
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangqian |
| Certification: | UL |
| Model Number: | M25 Push Lock Plug |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|
|
Detail Information |
|||
| Brand: | Xiangqian | Connector Name: | M25 IP67 Push Lock Panel Mount Plug |
|---|---|---|---|
| Material: | PA66 | Waterproof Grade: | IP67 |
| Gender: | Male Panel Mount, Female Plug | Current Rated: | 30A |
| Voltage Rated: | 600V | Samples: | Free |
| Delivery: | 3-5 Days | ||
Product Description

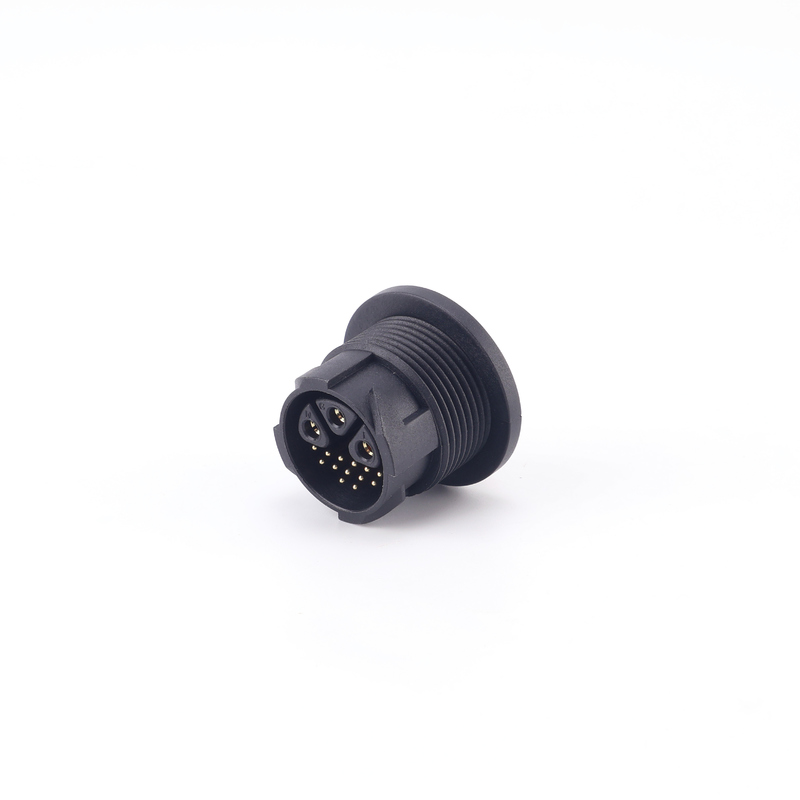

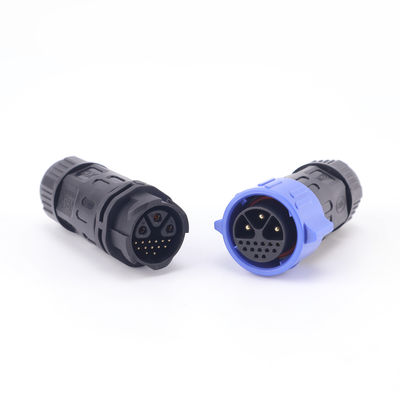

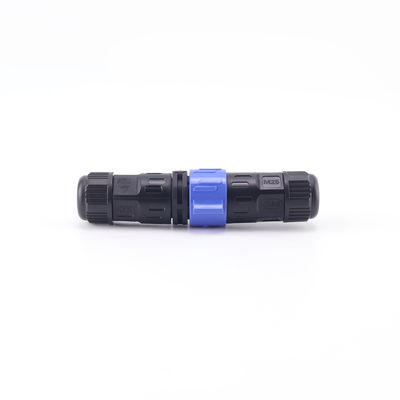

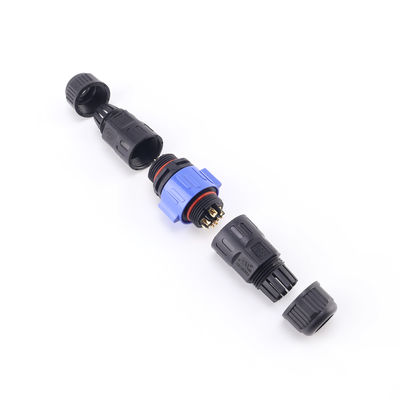

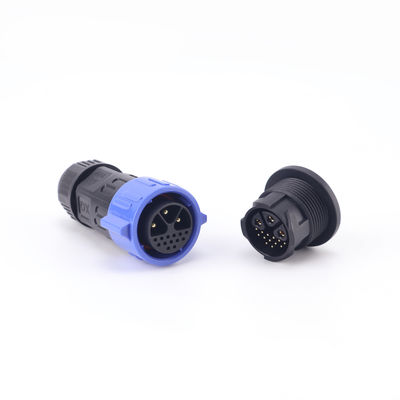

Customized IP67 Push Locking Panel Mount Plug M25 Outdoor LED Loight Waterproof Cable Connectors
The nylon IP67 custom male M25 waterproof connector is a high-reliability interface designed for outdoor power and signal transmission applications. Its housing is made of high-strength nylon, offering lightweight, corrosion-resistant, and impact-resistant properties, along with a wear-resistant surface, making it suitable for long-term outdoor use. Its self-locking structure ensures quick and secure connection, preventing loosening and significantly improving installation and maintenance efficiency.
With an IP67 rating, this product effectively protects against dust and temporary water intrusion. It is widely used in applications such as LED lighting, security surveillance, new energy equipment, outdoor power distribution, and smart agricultural irrigation systems.
Parameters:
| Cable OD | Ø6.0-14.0MM |
| Hardware Material | Copper gold plating |
| Contact Resistance | ≤ 10 mΩ |
| Connection Mode | Push Locking |
| Operating Rated | -40-+105 |
| Flame Retardant Grade | UL94 V-0 |
Performance Test Report (Factory Test)
| Test Project | Test Conditions | Result |
| Rated current | Test according to different numbers of cores | 3-20A |
| rated voltage | AC/DC testing | 250V ~ 450V |
| Operating temperature | high-low temperature cycles test | -40℃ ~ +105℃ |
| Waterproof performance (IP67/IP68) | IEC 60529 Water and dust resistance test | IP67 |
| Flame retardant properties | UL94 test | V-0 level |
| Salt spray test (optional) | 5% NaCl solution, 48 h | The terminals are free of red rust and function normally. |
| Contact resistance | Milliohm meter measures each needle | ≤ 10 mΩ |
| Insulation resistance | 100V DC, pin-to-pin / pin-to-shell | ≥ 100 MΩ |
M25 Push Lock Product Advantages:
- Self-locking design for easy operation and strong vibration resistance.
- M25 panel mount for secure, reliable, and space-saving installation.
- Nylon material is flame-retardant and UV-resistant, making it suitable for harsh environments.
- Customizable multi-core connectors to meet different current and signal requirements.
- Compliant with IEC standards and supports UL, CE, and other certifications.
