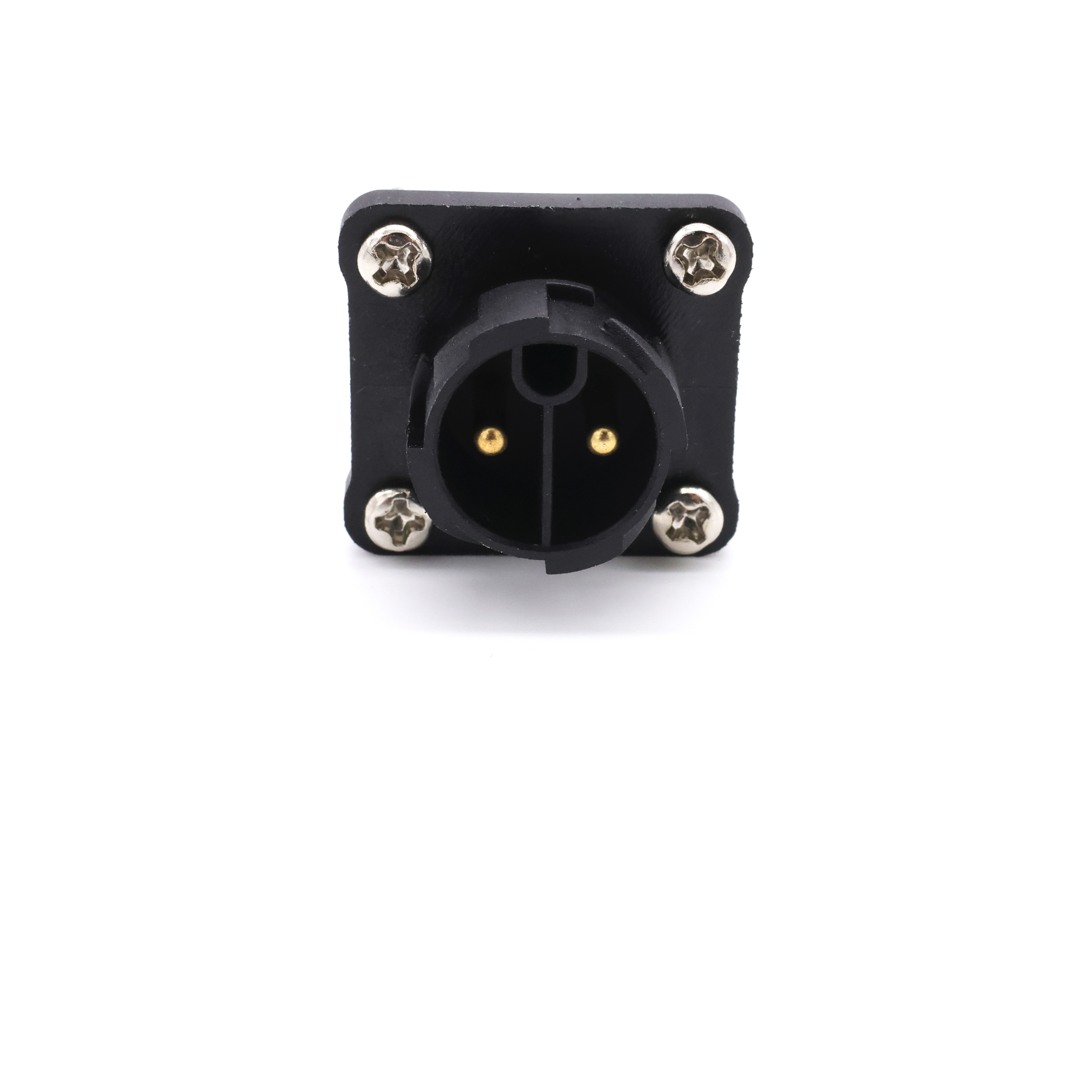

Crimp Panel Mount Waterproof Connector M20 Underground For Cable

Crimp Panel Mount Waterproof Connector M20 Underground For Cable

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Model Number: M20 Nylon Connector

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Certification: UL,CE,CCC Product Name: M20 Panel Mount Waterproof Connector
Number Of Contacts: 2-4 Connector Style: Straight
Wire Gauge: 18-22 AWG Contact Termination: Crimp
Material: Nylon Gender: Male/Female
Operating Temperature: -40°C To +105°C Sample: Free
High Light:

Crimp Panel Mount Waterproof Connector


M20 Panel Mount Waterproof Connector


M20 Underground Cable Connector

Product Description

M20 Panel Mount IP67 Self-locking Plug and Socket Waterproof Straight Connector for LED Lighting

Product Description:

M20 male panel mount connector is divided into four parts, including rubber, shell, tail and panel, the connection method is soldering method. The panel portion can be mounted on a panel, the other portion is attached to the application cable, the two connector parts are joined together with a screw connection with rubber seals to form a complete set of connector.
Front panel installation is convenient and quick, does not take up space, and requires little space.
Rear panel takes up a lot of space, but is secure and cannot be easily damaged.
Choose the front and rear panel mount, male and female panel mount according to your needs.


  • Product Name: Panel Mount Waterproof Connector
  • Operating Temperature: -40°C to +105°C
  • Contact Plating: Gold
  • Voltage Rating: 250V
  • Gender: Male/Female
  • Waterproof Mounted Connector
  • Panel-Mounted Waterproof Connector

Technical Parameters:

Contact Numbers 2 3 4
Voltage Rating 300V 300V 300V
Current Rating 20A 20A 10A
Wire Gague ≤1.5mm² ≤1.5mm² ≤0.75mm²
Cable OD 6mm-10mm
Operating Rating -40℃-+105℃
Waterproof level IP67
Seal Ring 13*9*6.5/7.5/8.5/9.5/10


• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

• Protect from dust and water during immersion, resistant to many oils and chemicals.

• Easily connected to proximity switch, flow monitoring devices and field bus components sensor devices and actuator devices.

• Ip67 Ip68 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation


• 100% new material, high-quality parts, strictly QC standard according to international customers.

Crimp Panel Mount Waterproof Connector M20 Underground For Cable 0

Product Advatages:

1. Double-sided quick bayonet connection with snap buttons, with a reliable locking system (visual and auditory), ensuring long-term reliable connection.
2. Spring push-and-sweep design, lock butt joint, safety car solid anti-vibration, impact resistance.
3. High-quality PA66 high-performance engineering plastic core (PA66 [polyamide 66 or nylon 66] glass fiber reinforced PA66 is non-toxic and environmentally friendly, with stable performance and reliable quality)
4. Visual fool-proof design, red dots to red dots to prevent wrong insertion (the separation design between each inner core enhances the protection of signal transmission, and the power transmission is also safer and more reliable to effectively deal with temperature rise changes caused by current)
5. Good waterproof performance and good sealing performance (the stable and strict spring snap self-locking device has good sealing performance. It can maintain good waterproof performance even in the face of harsh outdoor weather conditions)
6. Double locks are more reliable (easy to plug in and out: flexible self-locking, spring snap-type reinforcement lock, just press and hold the snap to unlock easily, realize single-handed blind insertion and anti-wrong insertion, simple, fast and efficient connection and installation )


Packing and Shipping:


1. Normally, our price is based on our standard export carton.
2. 30pcs/PE bag, 240pcs/CTN.
3. Customized packing is welcome, MOQ of printing customized box is 3000 pcs each model.


1.1-2 working days for samples;
2.3-7 working day for goods;
3.Express,Marine ,air transport and Forwarder are available.
