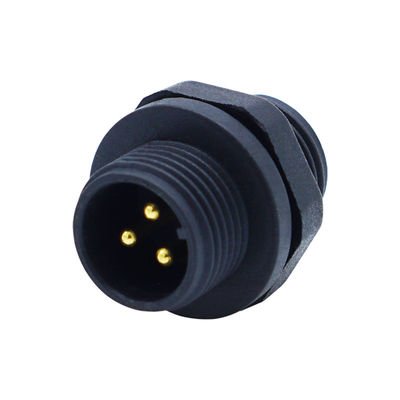

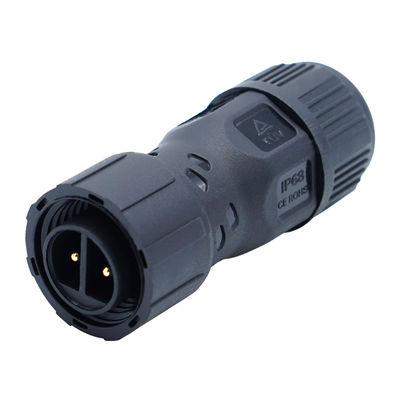

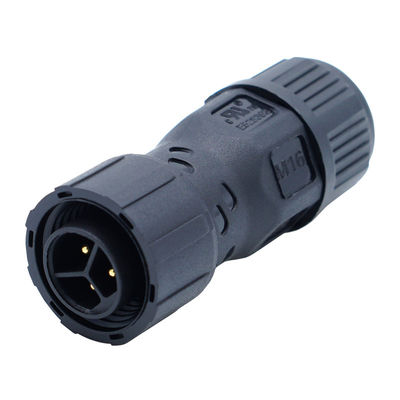

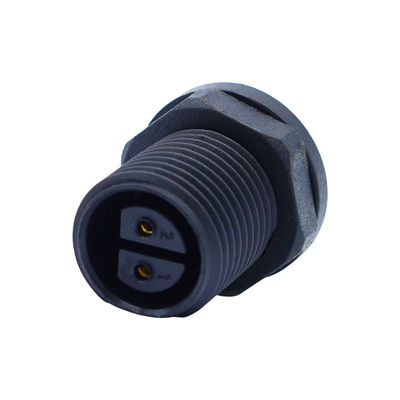

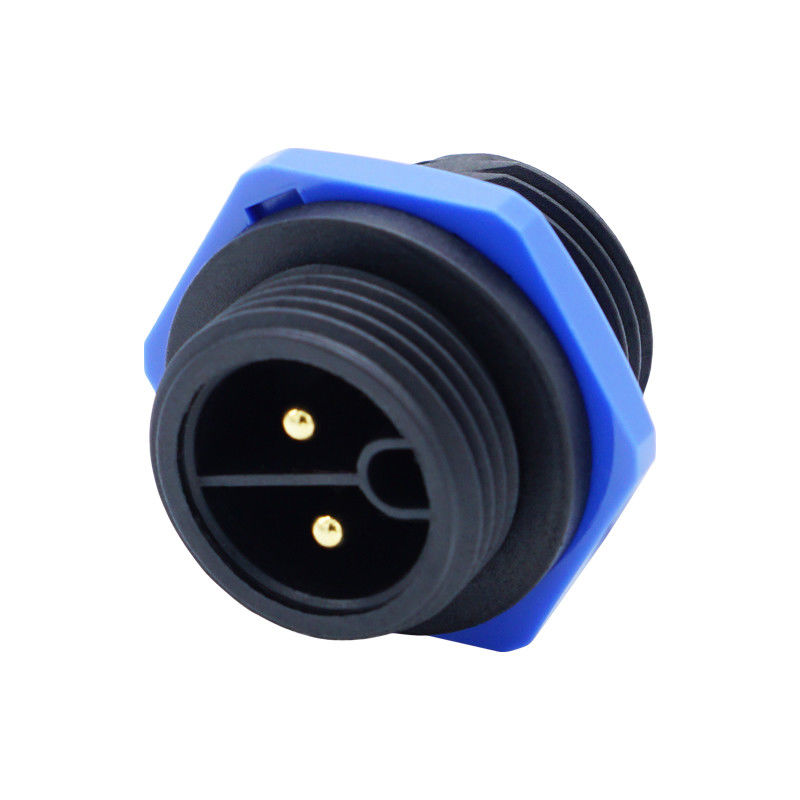

Panel Mount Socket M16 Assembly Type Waterproof Electric Connector

Panel Mount Socket M16 Assembly Type Waterproof Electric Connector

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Certification: RoHS
Model Number: M16

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Connector Style: Straight Temperature Range: -40℃~105℃
Rated Voltage: 250V Connector Gender: Male/Female
Waterproof Degree: IP68 Contact Resistance: ≤5mΩ
Dender: Male And Female Wire Gauge: 0.5-2.5mm²

Product Description


15A Rate Current Screw type M16 Plug with 2-6 Pins Plug

Product Description:

Screw Waterproof Connector

The M16 15A Waterproof Connector is made from high-quality materials that are resistant to corrosion and impact, ensuring long-term reliability and durability. It is designed to meet international safety standards and has been tested to ensure it can withstand extreme temperatures and harsh environmental conditions. With its compact and lightweight design, the connector is also easy to transport and install, making it ideal for use in a wide range of industries.


  • Product Name: Screw Waterproof Connector
  • Waterproof Degree: IP68
  • Protection Level: IP68
  • Connector Style: Straight
  • Wire Gauge: 0.5-2.5mm²
  • Connector Gender: Male/Female
  • IP67 IP68 Male Female Connector
  • Male Socket and Female Plug
  • Outdoor Lighting Plug and Socket

Technical Parameters:

Item Specification
Product Name Screw Waterproof Connector
Type Assembly Screw Type Waterproof Connector
Number of Pins 2-6
Connector Style Straight
Connector Gender Male/Female
Rated Voltage 250V
Rate Current 15A
Contact Resistance ≤5mΩ
Waterproof Level IP67
Waterproof Degree IP68
Protection Level IP68


M16 15A Waterproof Connector - Perfect for Outdoor Lighting Systems

The M16 15A Waterproof Connector, also known as the Planet Light LED Plug, is a high-quality assembly screw type connector designed for outdoor lighting systems. It features a male socket and female plug, allowing for easy and secure connection of wires.
Made in China by Xiangqian, this waterproof connector is built to withstand harsh outdoor environments and provide reliable performance. It is suitable for various applications such as landscape lighting, security lighting, and other outdoor lighting systems.

Key Features
  • IP68 Protection Level: The M16 15A Waterproof Connector has a high IP68 protection level, making it completely dustproof and waterproof. It can withstand immersion in water up to 1.5 meters for 30 minutes.
  • Easy Assembly: This connector utilizes a screw type design, making it easy to assemble and disassemble without the need for special tools.
  • High-Quality Materials: Made with high-quality materials, this waterproof connector has excellent resistance to corrosion, making it suitable for outdoor use.
  • 15A Rated Current: With a rated current of 15A, this connector can handle high power applications without any risk of overheating or failure.
  • 2-6 Pins: The M16 15A Waterproof Connector is available in 2-6 pins, providing flexibility for different wiring needs.
  • Straight Connector Style: This connector has a straight style, allowing for a neat and compact installation without any messy wires.
Application Scenarios

The M16 15A Waterproof Connector is ideal for various outdoor lighting systems, including:

  • Landscape Lighting: This connector is perfect for connecting outdoor landscape lights, providing a reliable and secure connection.
  • Security Lighting: With its high IP68 protection level, this connector is suitable for use in security lighting systems, ensuring continuous and uninterrupted operation.
  • Garden Lighting: The M16 15A Waterproof Connector is an excellent choice for garden lighting, providing a safe and waterproof connection for different types of lights.
  • Street Lighting: This waterproof connector is also suitable for street lighting applications, providing a durable and reliable connection for streetlights.

The M16 15A Waterproof Connector from Xiangqian is a high-quality and reliable solution for outdoor lighting systems. With its excellent waterproof and dustproof capabilities, easy assembly, and high-rated current, it is the perfect choice for various outdoor lighting applications. Choose the M16 15A Waterproof Connector for a safe and secure connection for your outdoor lighting needs.

Panel Mount Socket M16 Assembly Type Waterproof Electric Connector 0

Packing and Shipping:

Shipping method: By Air (5-7days) Advantage: safest,short shipping time shortcoming: Shipping is expensive, troublesome procedure

Shipping method: by sea

Advantage: lowest cost, Great transportation capacity shortcoming: Long transportation time, the greatest risk, and troublesome procedures

Shipping method: international express(4-6days) Advantage: Short transportation time, door-to-door service, high safety factor, simple procedures, stable cycle

shortcoming: highest shipping cost Strict requirements for weight and size


Q1: Are you trading company or manufacturer ?

A1: We are manufacturer.


Q2: How long is your delivery time?

A2: Generally it is 3-5 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.


Q3: Do you provide samples ? is it free or extra ?

A3: Yes, we could offer the sample for free charge but do not pay the cost of freight.


Q4: What is your terms of payment ?

A4: We accept bank transfer, TT, Paypal & Western Union, or other methods.


Quotation will be send you within 24 hours after receiving your specific enquiry.


For more information and items, please feel free to contact us.
