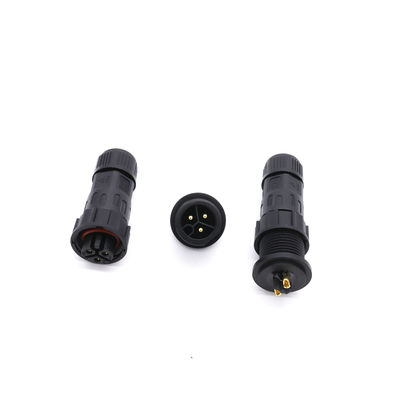

Female Assembly Screw Waterproof Connector M20 30A UL Certified

Female Assembly Screw Waterproof Connector M20 30A UL Certified

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Model Number: M20 Screw Assembly Connector

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Certification: UL,CE,CCC Brand: Xiangqian
Connector Gender: Male/Female Wire Gauge: 26-22 AWG
Application: LED Lighting Number Of Contacts: 2-4
Package: Carton Box Name: M20 Screw Waterproof Connector
Current Rating: 30A Lead Time: 10-15 Days
High Light:

Female Screw Waterproof Connector


30A Screw Waterproof Connector


Female M20 Cable Connector

Product Description

M20 30A Assembly Screw Type IP68 LED Display Waterproof Connector

Product Description:

This M20 wire connector is a pair of assembly waterproof connector with male female plug. It is assembled with different

components, includes waterproof screw nut, cable gland, enclosures, coupling nut, male and female core, O-ring. The plastic

components is PA 66 material, the cable gland and O-ring is silicone rubber material, the hardware is gold plated brass.


  • Product Name: Screw-Fixed Waterproof Connector
  • Gender: PA66
  • Application: Industrial
  • Voltage Rating: 500V
  • Connector Number: 2/3/4/5/6
  • Contact Plating: Gold

Technical Parameters:

Product Name M20 2 Pin/3 Pin Nylon Assembly Fixing IP68 Waterproof Connector 3 Pin Waterproof Connector Screw Terminal
Connector type M20 Assembly Connector
Jacket Color White, black or customized
Current Rating 1A-5A
Wire Cores 2 Cores-5 Cores
Wire Gauge 24AWG, 22AWG, 20AWG
Cable outside diameter 3.0-4.0mm
Jacket Material PVC
Inspection All goods are 100% inspected before delivery
Application Electric bike scooters
Service By International Express: FedEx/DHL/UPS/TNT; By air; By sea
Lead time 3~10 working days after payment
Certification ISO 9001:2008 & RoHS, U.L certificated


- LED screen -Audio-visual equipment

- Stage equipment - Street lamp lighting

- Medical equipment - Server

- Solar energy equipment - Ship equipment

- Electric power equipment - Vehicle equipment

- Communications equipment - Heavy machinery

- Industrial ethernet in audio, business, amusement - Industrial indoor and outdoor event in network environment

- Live stage action - DMX lighting


Female Assembly Screw Waterproof Connector M20 30A UL Certified 0

How to install cable on assembly wire connectors:

How to install cable on assembly wire connectors?

1. Disconnect all fittings, includes waterproof nut, cable gland, enclosure.

2. Putting the cable go through the waterproof nut, cable gland, and enclosure.

3. Solder the wire on sockets of male and female core.

4.Assemble all fittings, includes enclosure, cable gland, and waterproof nut.

5. Connect male connector to female connector, that is all ready.

Packing and Shipping:

Packing Details :

1. Our standard packing: Individual part with transparent PE bag with label;

2. OEM package available

Shipping Methods :

1. Samples and Small quantity order

FedEx/DHL/UPS/TNT/SF ,Door to Door.

1: Usually we ship your order by sea or by air.

2: We do our best to ship your order within 1 week after receiving your payment

3: We'll tell you the tracking number once your order has been sent.

4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.


  • 1.How can I get the price?

    -We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).

    -If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.


    2. Can I buy samples placing orders?

    -Yes.Please feel free to contact us.


    3.What is your lead time?

    -It depends on the order quantity and the season you place the order.

    -Usually we can ship within 7-15 days for small quantity, and about 20 days for large quantity.


    4.What is your payment term?

    -T/T,Western Union,MoneyGram,and Paypal.This is negotiable.


    5.What is the shipping method?

    -It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).

    Please confirm with us before placing orders.


    6.How do you make our business long-term and good relationship?

    -1. We keep good quality and competitive price to ensure our customers benefit ;

    -2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
