M20 Screw Wire Connectors Self Locking Plug Ip67 Electric
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Xiangqian |
| Certification: | RoHS |
| Model Number: | M20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 450*320*280 |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/days |
|
Detail Information |
|||
| Gender: | Male And Female | Type: | Adapter |
|---|---|---|---|
| Application: | Power,Automotive,Solar System,Outdoor LED Lighting | Current Rating: | 20A |
| Material: | Nylon | Voltage Rating: | 250V |
| Product Name: | Connector Solar Panels | Color: | Black |
| Waterproof Level: | IP67 | Connector Type: | Front Panel Mounted |
| Cable Length: | Customized | Pin: | 2/3/4/5pin |
| Working Temperature: | -20℃~80℃ | ||
| High Light: | m20 screw wire connectors,ip67 screw wire connectors,ip67 screw waterproof connector |
||
Product Description

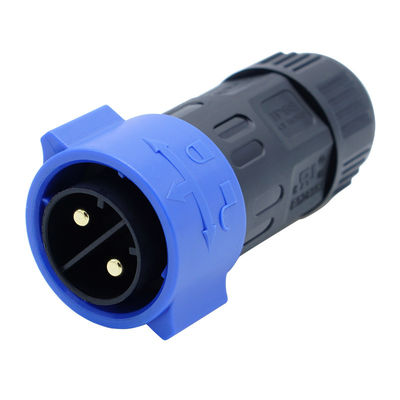

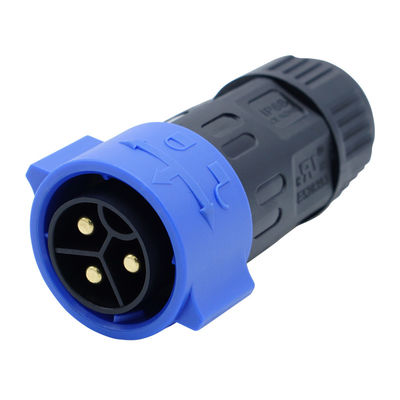

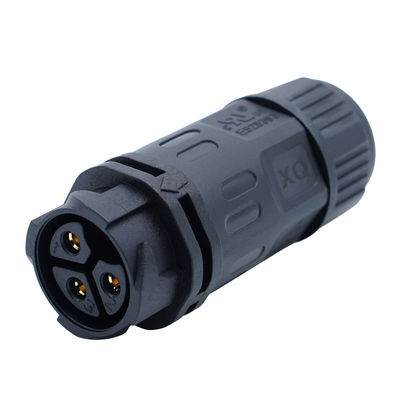

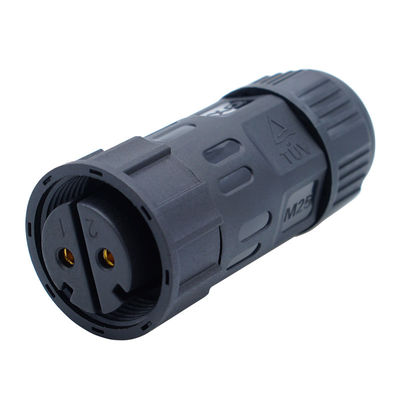

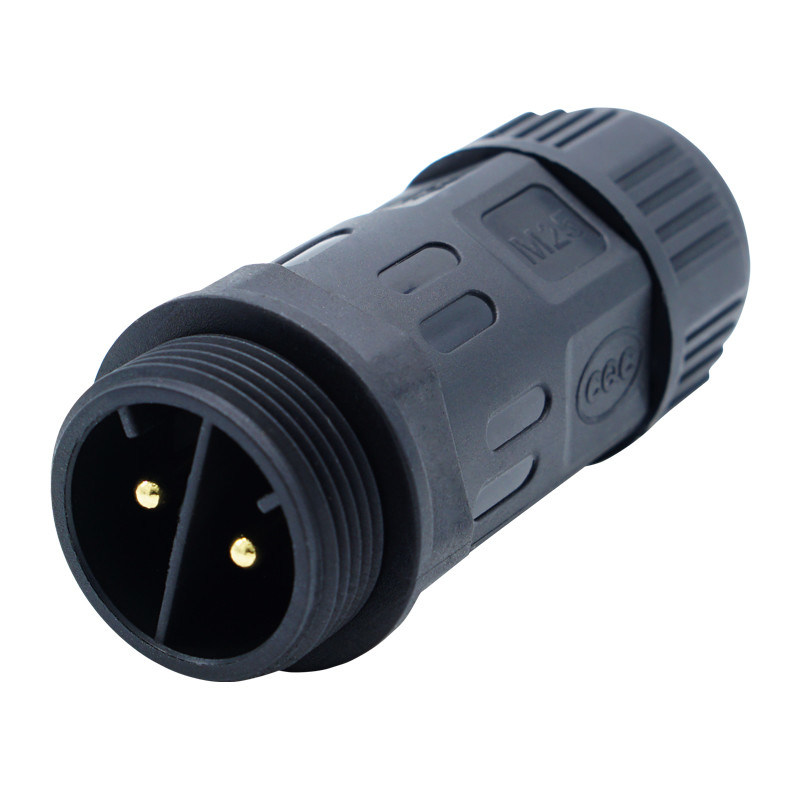

M20 Screw Type Self-locking plug IP67 Waterproof Electric Connector
Product description
- Screw threaded assembly, simple in using, convenient in installation;
- Customized for LED street lamp module products, easy in maintenance
- Insulators, housings and nuts are made in nylon material, which improves the product durability and safety;
- Customize series or parallel wiring mode, increase or decrease the number and spacing of T based on customers' request.
Product features
1. M20 nylon Waterproof Connectors
2. Connecting everything perfectly
3. 10A Max , IP67 protection level
4. Multi pin available
5. Approved by UL,CE,TUV and RoHS
6. Screw locking structure
7. 3 years warranty
8. Long service life & easy to assemble
Product specification
| Number of Positions | 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 Pin |
| Gender | Male / Female / Male to Female / Male to Male / Female to Female |
| Orientation | Straight |
| Mounting Type | Cable |
| Shell Material | Plastic / Metal |
| Interface Material | Gold-plated Copper Alloy/Tin-plated Copper Alloy |
| Termination Style | Solder Type |
| Connection Type | Single Ended Cable / Double Ended Cable |
| Ambient temperature | -40℃ ~ + 105℃ |
| Level of Protection | IP67 |
| Drawing Force | 40N ~ 80N |
| Connector Type | M10 / M12 / M15 / M16 / M18 / M19 / M25 |
| Withstand Voltage | AC 200V 50Hz without dielectric puncture or flashover over 1 minute |
| Contact Resistance | ≤10mΩ |
| Insulation Resistance | ≥10MΩ (under ordinary conditions or in humidenvironment) |
| Max Outside Diameter | Based on different size |
| Overall Length | Different types will have different length |
Widely Usage Applicaiton of Waterproof Panel Mount Connector
| Stage equipment | The smart grid | LED lighting |
| Medical equipment | Battery charging | Automation |
| Solar energy | Ship equipment | Agriculture |
| Electric power equipment | Vehicles | Ebike/motorcycle |
| Communications | Pool lights | Transportation |
OUR ADVANTAGES
1) We can offer you connectors with high quality & reasonable price.
2) We can do the designs according to the customers' requirement.
3) We can open customers' own mould as per their requirement.
4) We can offer your a good after-sell service.
5) We have strong professional design team.
6) Rich experience for over 12 years.
7) Prompt delivery: 7-15 days.
B) Small orders are welcome.
FAQ
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable?
A: Yes, but you need to pay the samples if you wanna more types samples, and it does not include freight. And we can refund the corresponding samples fee if you place a batch of the orders in the future.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
