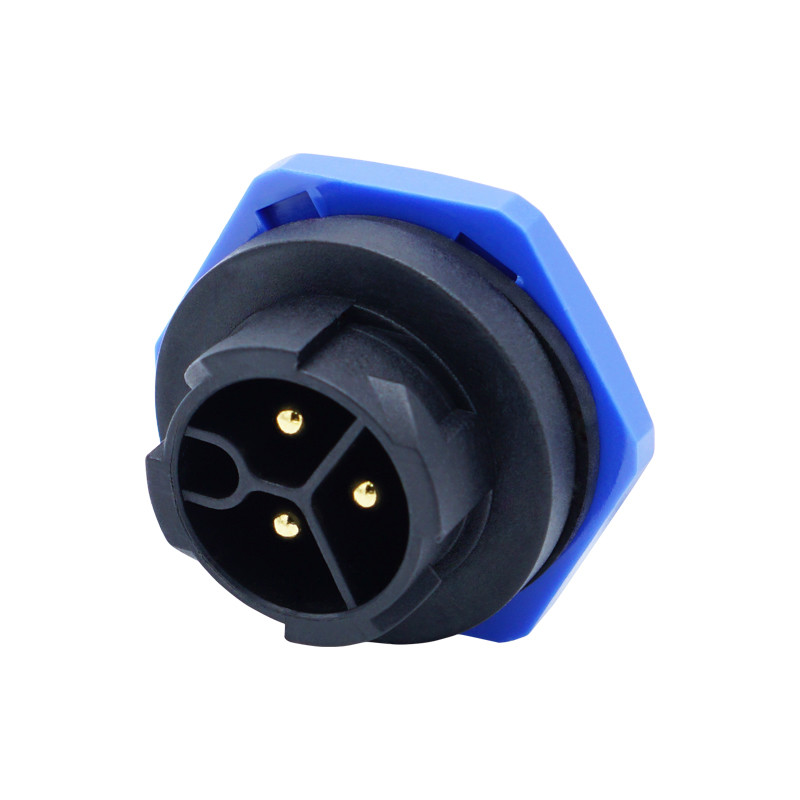

Male Rear Panel Mount Socket M20 Self-locking Waterproof LED IP67 Connectors
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangqian |
| Certification: | RoHS |
| Model Number: | M20 Rear Panel connector |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 450*320*280 |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000PCS/days |
|
Detail Information |
|||
| Insulation Resistance: | ≥100MΩ | Company Name: | Xiangqian |
|---|---|---|---|
| Connector Gender: | Male+Female | Samples: | For Free |
| Feature: | Self-locking Male Panel Mount With Female Cable Plug | Connector Name: | M20 Panel Type Waterproof Connector |
| Operation Rating: | PA66, -40℃ ~ +125℃ | Package: | Carton |
| Aplications: | LED Light, Street Light. | Wire Matching: | ≤ 1.0MM²~1.5MM² |
Product Description
Male Rear Panel Mount Socket M20 Self-locking Waterproof LED IP67 Connectors
Product Description:
Our company has M20 waterproof connectors in dozens or twenty different styles, including self-locking and threaded ones. The self-locking and threaded versions are further divided into assembly and injection molding. The assembled version is also divided into front mounted male panels and rear mounted male panels with female connectors but without wires, but we can help solder the wires together. There are also many cores for connectors, and currently M20 can achieve 8 cores. If you have any requirements, we can increase the number of cores for connectors according to your needs.
Features:
- Product Name: M20 Self-locking Rear Panel Mount Waterproof Connectors
- Package: Carton
- Samples: 1-5PCS For Free
- Insulation Resistance: ≥100MΩ
- Connector Gender: Male Panle Mount +Female plug
- Product Keywords: Electrical Power Connector, M20 Screw type Waterproof Connectors
- Current Rating: 10-20A
Technical Parameters:
|
Product name |
M20 Self-locking IP67 Connector |
| Brand Name | Xiangqian |
|
Number of cores |
2-4 cores |
|
Delivery time |
the normal delivery time is 5 to 10 days. |
|
Production |
our company produces according to customer requirements |
|
Proofing |
customers provide samples or specifications |
|
Color |
Conventional white and black, other colors can be specified |
|
Shape |
circular |
|
Characteristics |
waterproof |
|
Material |
PVC, Nylon,Teflon,Pu |
|
Waterproof grade |
IP67 |
|
Working temperature |
Nylon -40 °~+105 ° |
|
Rated voltage |
250V/300V |
|
Rated current |
10A-20A |
|
Wire matching |
≤ 1.0MM²~1.5MM² |
|
Wire outer diameter |
6.0MM~10.0MM |
|
Can be inserted |
500 times |
|
Color |
Black Blue/Black Yellow (customizable) |
Applications:
- LED screen -Audio-visual equipment
- Stage equipment - Street lamp lighting
- Medical equipment - Server
- Solar energy equipment - Ship equipment
- Electric power equipment - Vehicle equipment
- Communications equipment - Heavy machinery
- Industrial ethernet in audio, business, amusement - Industrial indoor and outdoor event in network environment
- Live stage action - DMX lighting
Workingshop:
We have our own factory, complete production and inspection equipment. The production department is divided into incoming material inspection department, wire cutting, peeling, end punching, soldering, forming and QC testing, and finally packaging and shipping.
Support and Services:
|
MOQ |
500pcs or as its raw material complexity |
|
Place of Origin |
Shenzhen, Guangdong, China |
|
Price terms |
EXW, DDU, FOB, CIF, DDP |
|
Payment methods |
PayPal, T/T, Western Union, 50% T/T in advance, balance before shipping. |
|
Delivery time |
Usually 10-15 business days, On-time delivery |
|
Sample time |
Within 3-5 business days. |
We accept bulk processing of incoming materials and customization of waterproof joints.
Packing and Shipping:
Shipping method: By Air (5-7days) Advantage: safest,short shipping time shortcoming: Shipping is expensive, troublesome procedure
Shipping method: by sea
Advantage: lowest cost, Great transportation capacity shortcoming: Long transportation time, the greatest risk, and troublesome procedures
Shipping method: international express(4-6days) Advantage: Short transportation time, door-to-door service, high safety factor, simple procedures, stable cycle
shortcoming: highest shipping cost Strict requirements for weight and size
FAQ:
Q1.What's your service?
A1: We provide technical support and customize solutions.
Q2. Can I have a sample for quality check?
A2: Yes, samples based on your request with fast delivery.
Q3.How to place an order?
A4: Contact with online service, or sent an email to us, we will confirm you with product price, specs, packing etc.
Q5. How about your delivery time?
A5: Shipped in 3-8 working days after payment be confirmed.
Q6: What is your terms of payment ?
A6: Accepted Payment Type: T/T, L/C, PayPal, Western Union or other payment methods.
Q8: Which kind of wire connector can I use?
A8:Kindly tell us your applications, cable diameter to help us recommend the suitable models.
What you need is what I want to do for you! Just feel free Contact us now !
