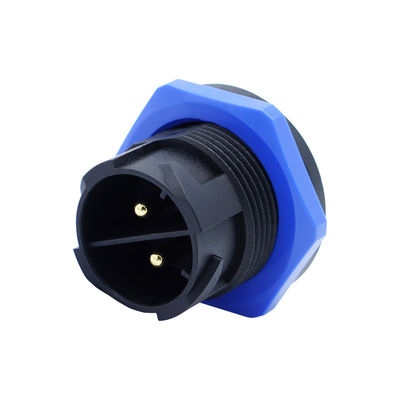

Ebike Waterproof Cable Connector Self-Locking Panel Mount

Ebike Waterproof Cable Connector Self-Locking Panel Mount

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Certification: RoHS
Model Number: M20 Self-locking Type

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Cable Length: 20cm Cable Specification: 2.5mm²
Color: Black Connector Gender: Male
Connector Number: 2 Connector Type: M20 Screw Type Connector
Contact Resistance: 2.5mΩ Current Rating: 20A
Insulation Resistance: 1000MΩ Material: Copper, Plastic
Temperature Range: -25℃~+85℃ Voltage Rating: 250V
Waterproof Level: IP68 Withstand Voltage: 1500V
High Light:

Ebike Waterproof Cable Connector


Self-locking Waterproof Cable Connector


Panel Mount Ebike Cable Connector

Product Description

Self-locking Panel Mount Ebike Waterproof Cable Connector
Detailed Product Description

Our customized solutions and one-stop service will help you achieve a 20% to 80% reduction in harness installation time, labour costs for on-site assembly, and BOM development and design processes.

Our products are used in a wide range of applications, such as: rail locomotive cables, marine yacht cables, new energy electric vehicles, wind power generation control cables, industrial Ethernet cables, industrial robots and manipulators, motors, encoders, PLCs, drives, industrial cameras and machine vision, sensors and industrial automation control, underwater robots and exploration, industrial RFID devices, industrial control safety, gratings, light curtains, etc.



M20 Black LED Lighting Cable Wire IP68 Waterproof Electrical Connector


Detailed Product Description




M20 Plug

Model Series

M20 Self-locking Plug


Molded, Assembly type



Housing code

2 / 3 /4/5/ 2+3 / 2+4

Cable Length

Standard 0.5M ; Can be Customized

Contact Material

Brass Plated with 3U Pure Gold

Production Processing

Precision Injection Moding





Other Protection

Dustproof,Moistureproof,Antiviration,High Temperatuteand Oil Corrosion Resistance


Electric vehicle/motorcycle, new energyvehicle, lithium battery, energy storage,photovoltaic, Power Exchange station,charging post, etc.

Sustained Current




  • Rated current: 20A/10rms.
  • IP67/68 rating
  • Voltage rating: 300V
  • Cable Range: 3~11mm
  • UL, TUV, CB, CCC, CE, RoHS approved


E-BIKE Electric Bike 5pin Motor Waterproof Extend Cable Connector e bike Bicycle


1. Direct plug-in assembly, simple in using, convenient in installation;

2. Specially designed for low-voltage, weak-current products;

3. With compact structure, small and exquisite shape, the plug is more suitable for product needs;

4. Our company developed the plug for electric bicycle signal lines in 2018


Applicaiton of M20 Screw Type Connectors


- LED screen -Audio-visual equipment

- Stage equipment - Street lamp lighting

- Medical equipment - Server

- Solar energy equipment - Ship equipment

- Electric power equipment - Vehicle equipment

- Communications equipment - Heavy machinery

- Industrial ethernet in audio, business, amusement - Industrial indoor and outdoor event in network environment

- Live stage action - DMX lighting


Ebike Waterproof Cable Connector Self-Locking Panel Mount 0


Packaging & Shipping


Shipping Methods Int'l express, By Air, By Sea, By Train
Freight Cost Prepaid or Collected by Customers
Delivery to Customer 4-5days after shipment
Packaging PE bag in carton or as customer's requests
Paper Carton size 45*32*28cm


Our Services

MOQ 500pcs or as its raw material complexity
Place of Origin Shenzhen, Guangdong, China
Price terms EXW, DDU, FOB, CIF, DDP
Payment methods PayPal, T/T, Western Union, 50% T/T in advance, balance before shipping.
Delivery time Usually 10-15 business days, On-time delivery
Sample time Within 5 business days.



Q1.Are you a manufacturer?

A1: Yes, we are a experienced manufacturer with our own molds and production lines.


Q2.How about quality of products?

A2: Our technicians and QC teams test the products one by one using specail device and instruments.


Q3.How about price?

A3: We are a manufacturer and always offer our customers the most competitive factory price.


Q4.How to play an order?

A4: Contact with online service, or sent an email to us,we will confirm you with product price,specs,packing etc.


Q5.May I buy samples from you?

A5: Yes! You are welcome to place sample order to test our superior quality and services.
