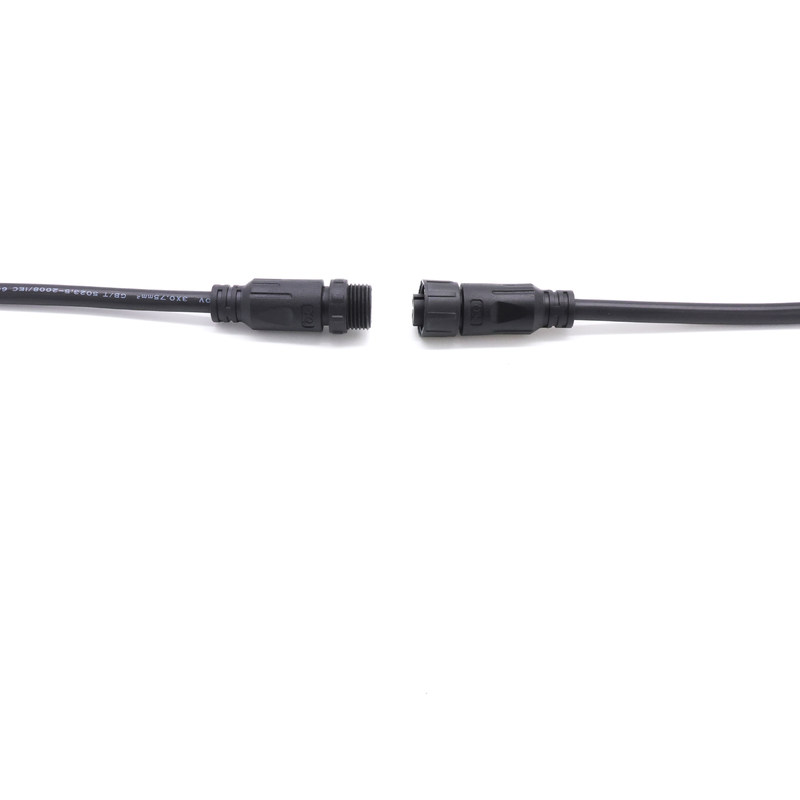

Electrical Waterproof Cable Connector Plug M16  For LED Strip

Electrical Waterproof Cable Connector Plug M16 For LED Strip

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Model Number: M16

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Certification: UL,CE,CCC Delivery Time: 5 Days
Rated Current: 3A/5A/7A/10A Brnd Name: Xiangqian
Curent Rating: 10A Application: LED Light
Color: Customized Product Name: M16 Nylon Screw Waterproof Cable Connector
Number Of Contacts: 2-8 Sample: Free
High Light:

Waterproof Cable Connector For LED Strip


Electrical M16 Waterproof Connector


M16 Waterproof Connector For LED Strip

Product Description

IP67 M16 Male Female Cable Plug Electrical Waterproof LED Strip Connector

Product Description:

1. Nylon material connector pre-mold with PVC/rubber cable.
2. Application: it is widely used in power, led lighting, driver, controller, etc.
3. Feature: favorable waterproof level ip67, safe and easy installation.


  • 1.Extremely strong resistant to acid,alkali,chemical cleaning agent /reagent properties;

    2.Resistant to welding spark,continually twist ;

    3.Resistant to oil,coolant ,lubricant and emulsion;

    4.Pin configurations:2,3,4,5,7,8,12,14,19,24 properties ;

    5.Shield and un-shield Version Available with metal or plastic housing;

    6.Meet IP67/IP68 waterproof requirements;

    7.Temperature Range:-25℃ ~ +85℃;

Technical Parameters:

M16 Connector
Number of Positions 2 / 3 / 4 / 5 / 6 / 7 / 8 Pin
Gender Male / Female
Orientation Straight / Right Angle
Mounting Type PCB Mount / Panel Mount / Cable
Shell Material Metal / Plastic
Termination Style Screw-joint / Solder Type
Shield Shield / Unshielded


NO.of contacts 2 3 4 5 5A 6 7 8
Rated Current/Voltage 7A-200V 7A-200V 7A-200V 6A-200V 5A-60V 5A-200V 5A-60V 5A-60V
Operation Limit Voltage(AC.V.rms) 250 250 250 250 125 250 125 125
Withstanding Voltage(AC.V.rms) l Minute 1500 1500 1500 500 1500 1500 800 500

Insulation Resistance

(MΩ MIN.) at DC 500V

1500 1500 1500 1500 1000 1500 1000 1000

Contact Resistance


7 7 7 7 7 7 7 7
Solder Cup Mouth Aperture 1 1 1 1 1 1 1 1
Solder Inter Diameter 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5


M16 connectors are widely used on different machineries, equipments, communications, lighting, trains, marines etc. Design with a black short rubber tube on the end, mainly used for the electronical connection between the cables.


Electrical Waterproof Cable Connector Plug M16  For LED Strip 0

Our advantages:

1. High quality and reasonable price.

2. Approval: TUV, CE, UL.
3. Independent research and development; Cable and hardware production; Injection mold and mould making.
4. Our connector can be used outdoor during harsh winter or sweat summer, the endurance temperature range is -40℃- +105℃.
5. Perfect assembly workshop; One-stop production.
6. Any question from you are welcome and will be replied in 24 hours.

Packing and Shipping:

1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2. Import duties, taxes and charges are not included in the item price or shipping charges.These charges are Buyer’s
3.If you didn't receive the item after 55 days, please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays caused by the customs,Import duties,taxes or other customscharges.
5.If you need more fast delivery, contact us to use Fedex, DHL, TNT,UPS ect and pay the extra freight cost.
6.Remote area addition fee(UPS & FedEx & DHL)A Remote Area is defined as a post code or in the absence of post code, a suburb/town name that is difficult to serve. A delivery to one of the following post codes and towns would attract a Remote Area surcharge.
7. 100% QC before shipment.


Q: What is the Minimum Order Quantity(MOQ)?

A: Normally, MOQ is 1000pcs, but special requirements can be accepted.

Q: How much do I need to pay for your OEM service?

A: No need to pay extra cost for our OEM service if order quantity over 1000 pcs. The OEM cost includes in the unit price.

Q: What is the lead time?(How long do you need me to prepare my goods?)

A: 2-4 days for sample orders, 10-15 days for mass production orders (based on different quantities, OEM , etc.)

Q: How will you deliver goods to me?

A: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.

Q: How long do I need to wait before my goods arrive?

A: 5-7 days for air transportation, 3-5 days for international express.

Q: How is your product quality?

A: Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. DOSIN always care what you care!

Q: What is your warranty?

A: Our warranty is 12 months after delivery, DOSIN pays high attention to after-sales service.
