Electrical Straight Waterproof Quick Connect Wire Connectors IP67 OEM Service
Product Details:
Place of Origin: | China |
Brand Name: | Xiangqian |
Certification: | RoHS |
Model Number: | 3+6 Motor Head |
Payment & Shipping Terms:
Minimum Order Quantity: | 10 PCS |
---|---|
Price: | Negotiable |
Packaging Details: | 450*320*280 |
Delivery Time: | 10-15 days |
Payment Terms: | T/T, Western Union |
Supply Ability: | 10000PCS/day |
Detail Information |
|||
Package: | Carton | OEM/ODM: | Accept |
---|---|---|---|
Color: | Black | Brand: | Xiangqian |
Product Name: | 3+6 Motor Head | MOQ: | 10pcs |
Material: | PVC | Application: | Electric Bike |
Lead Time: | 10-15 Days | ||
High Light: | Straight Waterproof Quick Connect Wire Connectors,OEM Waterproof Quick Connect Wire Connectors,Straight Ip67 Electrical Connectors |
Product Description

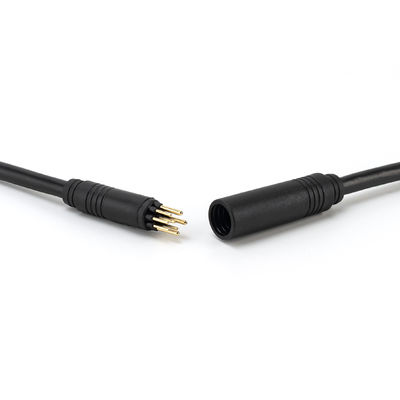

3+6 Motor Head Pin IP67 Auto Electric Bicycle Plug Waterproof Connector
Product Description:
Made of durable material for long use life.
Waterproof interface, excellent sealing
Extension cable with arrow mark for easy installation
It fits for bafang hub motor
Specification:
Type: Motor Cable
Color: Black
Cable Length: 400mm
IP Code: IP65
Material: PVC
Suit For:500W ebike motor
Features:
- Rated voltage: 500VAC
Rated current 15A for 1-3 terminals 5A for 4-9 terminals
Contact resistance: ≤10mΩ
Temperature range: -40℃-+105℃
Insulation resistance: should be ≥100mΩ under normal conditions and humid conditions
Withstand voltage: AC1000V 50HZ for 1 minute without breakdown or flashover
Contacts: Copper alloy nickel/gold plated
Mechanical life: 500 times
Sheath: PVC
Pin diameter: 3²x1.5 6²X1.0
Maximum outer diameter: plug 10mm socket 14mm
Line length: 0.65m
Use wire specification: 1.2mm²
Production process: injection molding
Technical Parameters:
Applications:
This type waterproof connector use in electrical bike.
Support and Services:
1)Your inquiry will be replied within 12 hours.
2)Well-traind&experienced sales can reply your inquiries in English.
3)During working time,E-mail will be replied to you within 2 hours.
4)OEM&ODM projects are highly welcomed ,we have strong R&D team.
5)The order will be produced exactly according to order details and proofed samples,
our QC will submit inspection report before shipment.
6)Your business relationship with us will be confidential to any third party.
7)Good after-sale service.
Packing and Shipping:
Packaging and Shipping
The Waterproof Male Female Connector will be carefully packaged to ensure it reaches you in perfect condition. It will be packaged in a cardboard box with bubble wrap around it for added protection.
The package will then be shipped via a trusted courier such as FedEx or DHL to ensure it reaches you quickly and safely.
FAQ:
-
1.Q:Is the sample avaliable and free?
A: sample is available, but it should be paid in advance. The cost of sample will be refunded after further order.
2.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
3.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
4.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
