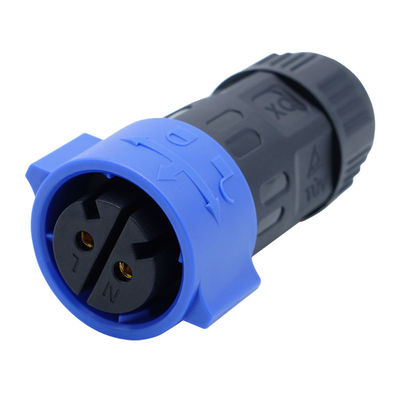

Nylon Panel Mount Waterproof Plug M20 M25 M16

Nylon Panel Mount Waterproof Plug M20 M25 M16

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Xiangqian
Certification: RoHS
Model Number: M25

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Gender: Male And Female Type: Adapter
Application: Power,Automotive,Solar System,Outdoor LED Lighting Current Rating: 20A
Material: Nylon Voltage Rating: 250V
Product Name: Connector Solar Panels Color: Black
Waterproof Level: IP67 Connector Type: Front Panel Mounted
Cable Length: Customized Pin: 2/3/4/5pin
Working Temperature: -20℃~80℃
High Light:

nylon panel mount waterproof plug


panel mount waterproof plug m20


panel mount waterproof connector m25

Product Description

M20 M25 M16 Panel Mount Socket IP67 Waterproof Electric Connector
Product description

  • Screw threaded assembly, self-locking plug simple in using, convenient in installation;
  • Customized for Ebike, outdoor LED, LED street lamp module products, easy in maintenance
  • Insulators, housings and nuts are made in nylon material, which improves the product durability and safety;
  • Customize series or parallel wiring mode, increase or decrease the number and spacing of T based on customers' request.

Product specification

Number of Positions2 / 3 / 4 / 5 / 6 Pin
GenderMale / Female / Male to Female / Male to Male / Female to Female
Mounting TypeCable
Shell MaterialPlastic / Metal
Interface MaterialGold-plated Copper Alloy/Tin-plated Copper Alloy
Termination StyleSolder Type
Connection TypeSingle Ended Cable / Double Ended Cable
Ambient temperature-40℃ ~ + 105℃
Level of ProtectionIP67
Drawing Force40N ~ 80N
Connector TypeM10 / M12 / M15 / M16 / M18 / M20 / M25
Withstand VoltageAC 200V 50Hz without dielectric puncture or flashover over 1 minute
Contact Resistance≤10mΩ
Insulation Resistance≥10MΩ (under ordinary conditions or in humidenvironment)
Max Outside DiameterBased on different size
Overall LengthDifferent types will have different length

Widely Usage Applicaiton of Waterproof Panel Mount Connector
Communications Application
Solar System
Electric power equipment
Outdoor and indoor led lighting
Signal connection
AC electrical power

Nylon Panel Mount Waterproof Plug M20 M25 M16 0
1) We can offer you connectors with high quality & reasonable price.
2) We can do the designs according to the customers' requirement.
3) We can open customers' own mould as per their requirement.
4) We can offer your a good after-sell service.
5) We have strong professional design team.
6) Rich experience for over 12 years.
7) Prompt delivery: 7-15 days.
B) Small orders are welcome.
1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2.Q:Is the sample avaliable?
A: Yes, but you need to pay the samples if you wanna more types samples, and it does not include freight. And we can refund the corresponding samples fee if you place a batch of the orders in the future.
3.Q: Can you assured the quality?
A: Yes, we’ve gained the CE, RoHS, ip65-ip68, UL certification. And we’ve have strict QC team, all products will be tested before delivery.
4.Q: What’s the terms of payment?
A: We can accept T/T, LC, Paypal and Western Union
5.Q: What’s the delivery time?
A: It depends on the quantity, as usual it will takes 3-5 for small quantity.
