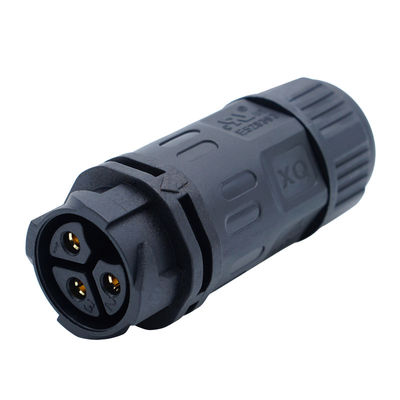

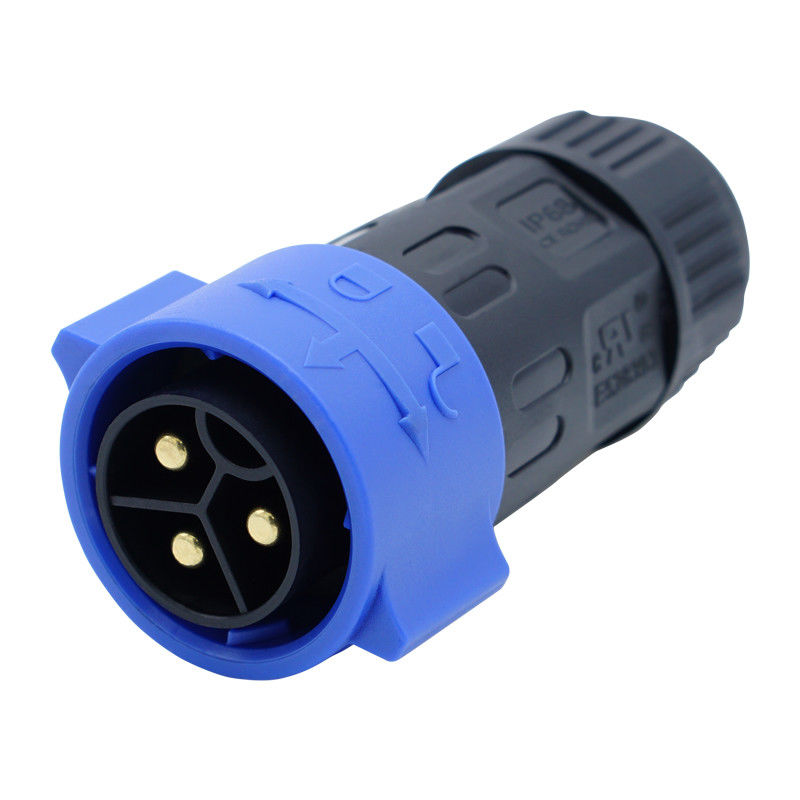

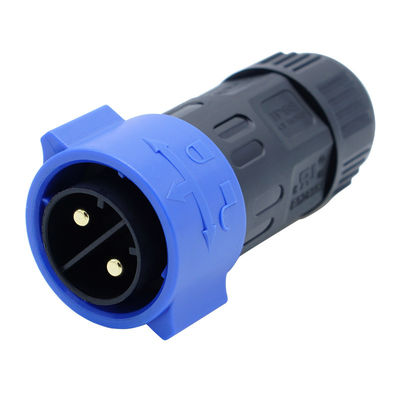

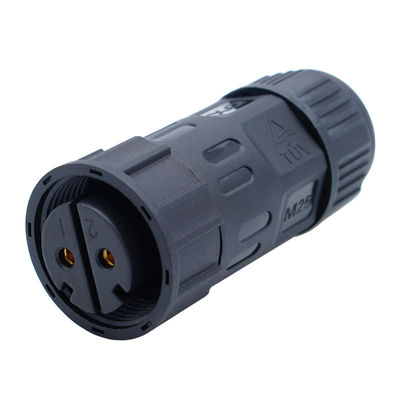

Screw Locking Waterproof Power Connector

Screw Locking Waterproof Power Connector

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Model Number: M20 Nylon Connector

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Certification: UL,CE,CCC Product Name: M20 Panel Mount Waterproof Connector
Number Of Contacts: 2-4 Connector Style: Straight
Wire Gauge: 18-22 AWG Contact Termination: Crimp
Material: Nylon Gender: Male/Female
Operating Temperature: -40°C To +105°C Sample: Free
High Light:

Screw Locking Waterproof Power Connector


Waterproof Power Connector 22 AWG


Screw Locking Small Waterproof Electrical Connectors

Product Description

M20 IP68 Screw Locking 20A Waterproof Connectors 300V 2 Pole Male Socket for Electric Vehicle

Product Description:

1.IP67 waterproof protection level
2.Cable color: White/black/blue/yellow
3.Voltage rating: 300V
4.Easy installable, push locking connection
5.Customer's drawings and designs are welcome, as we have our own professional R&D team to provide you various solutions.
6.Application: our products are widely used in LED lighting, Flexible strip outdoor display, electrical equipments, automation machines, electrical vehicle and etc...


  • Sealed against dust and fluid (IP68)
  • Vibration resistance,impact resistance,stretching resistance
  • socket with cover
  • Cable assembly support
  • Customized cable size and length

Technical Parameters:

Connector type: Power Socket
Waterproof level: IP67
Cable specification: 18AWG-12AWG
Cable diameter range: 4.5mm-11mm
Rated current (A): 20A
Operating voltage (AC.V.rms): 500V
Withstand voltage (AC.V)1min: 1500V
Contact resistance: <5mΩ
Insulation resistance: >500MΩ
Durability: ≥3000 mating and unmating cycles
Temperature rating: -40°C~105°C
Shell and insulated parts: High performance engineering plastics
Contact pin: Copper alloy(gold-plated)
Spring: Stainless steel
Sealing: Silica gel


This item have a range of application. Such as, outdoor LED industry, street lighting, display screen, building lighting lamps and lanterns, etc.)


Also, it is widely used in hybrid, car and ship, LED street light, LED driver power supply, LED display, the lighthouse, cruise ships, industrial equipment, communications equipment, detection equipment, etc


This Waterproof Male/Female Connector is a very useful accessory when setting up Your Waterproof DIY LED Strip installation.


Connect reliable and effective outdoor waterproof.


Screw Locking Waterproof Power Connector 0

Product Advatages:

1. Connector: Nylon material, molded with cable crimping front panel mount type.

2.Color: Black, white for choices.

3. Price&Quality:High quality and best price.

4. Wire Length:Any length of the cable is available and terminal processed.

5.Favorable waterproof feature: IP65 waterproof level.

6.The accepted wire diameter: 4.0-7.2mm.

7.2,3,4,5,6 Pin can be choices.


Packing and Shipping:


1. Normally, our price is based on our standard export carton.
2. 30pcs/PE bag, 240pcs/CTN.
3. Customized packing is welcome, MOQ of printing customized box is 3000 pcs each model.


1.1-2 working days for samples;
2.3-7 working day for goods;
3.Express,Marine ,air transport and Forwarder are available.



Q1.Are you a manufacturer?

A1: Yes, we are a experienced manufacturer with 5years.


Q2.How about quality of products?

A2: Our technicians and QC teams test the products one by one using specail device and instruments.


Q3.How about price?

A3: We are a manufacturer and always offer our customers the most competitive factory price.


Q4.How to play an order?

A4: Contact with online service, or sent an email to us,we will confirm with you about product price,specs,packing etc.


Q5.May I buy samples from you?

A5: Yes! You are welcome to place sample order to test our superior quality and services.


Q6.Can I visit your factory?

A6: Yes, welcome to our factory.


Q7.How can I make OEM or ODM orders?

A7: We have different OEM orders please contact us or view more items on our alibaba page.

tell us your idea or your drawing,we will achive it for you!


Q8.How do you ship the finished product?

A8: Based on the customer request, we can ship by customer's international express account like DHL,TNT,UPS,FEDEX or by our forwarder shipping.
