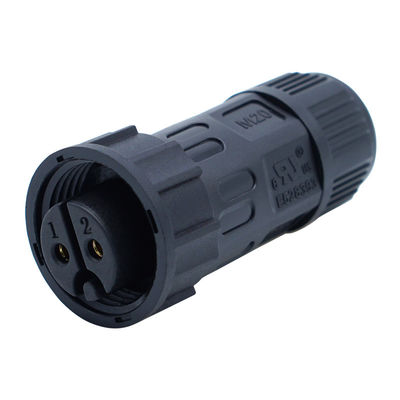

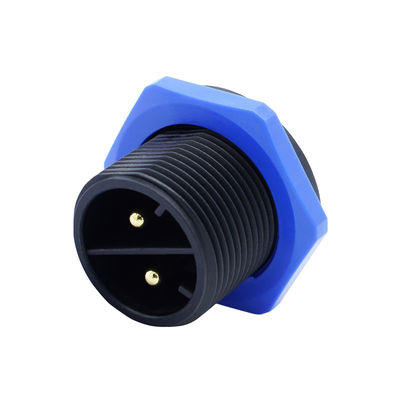

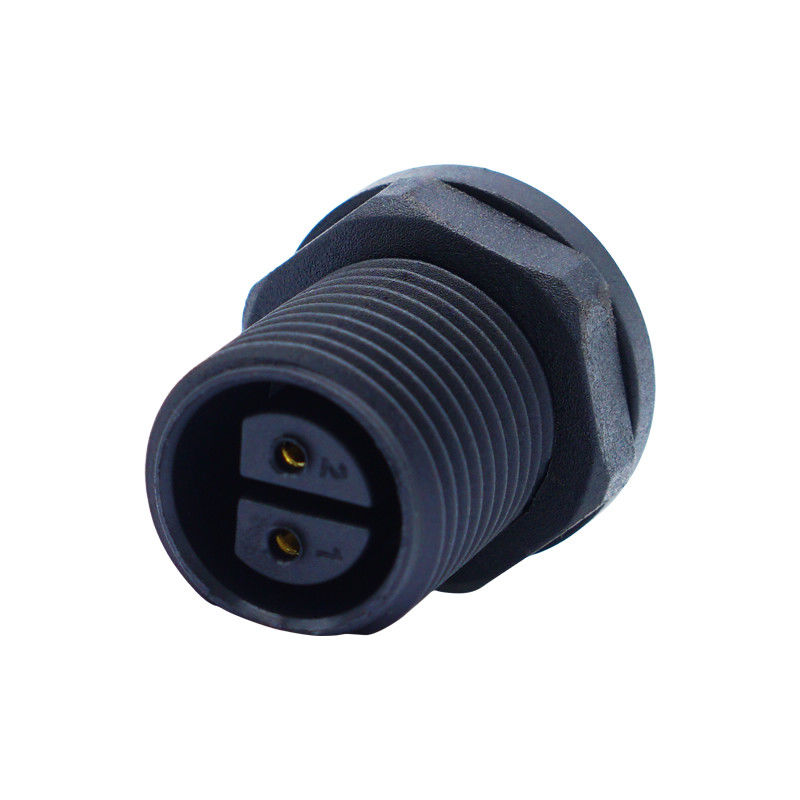

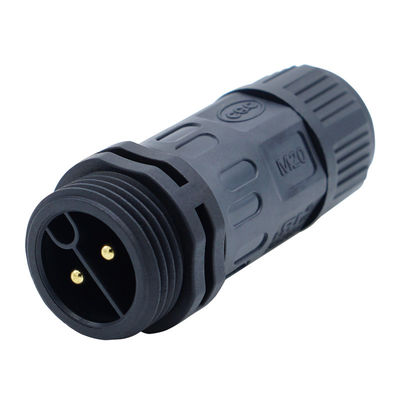

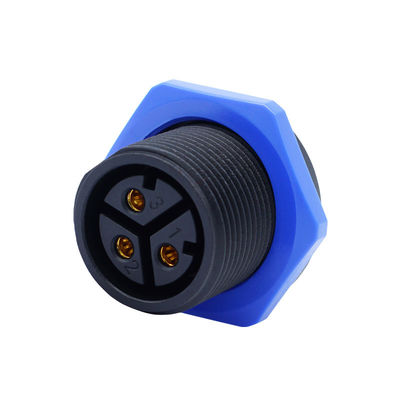

Automotive Panel Mount Waterproof Connector

Automotive Panel Mount Waterproof Connector

Product Details:

Place of Origin: China
Certification: RoHS
Model Number: M16 Self-lock

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Brand Name: Forward Connector Name: M16 Self-locking IP67 Nylon Connector
Type: Adapter Packaging: Carton
Color: Black Withstand Voltage: AC1000V/1min
Connector Gender: Male/Female Current Rating: 10A
Application: LED Protection Level: IP67
Wire Specification: 24-14AWG Sample: Free
High Light:

Automotive Panel Mount Waterproof Connector


Panel Mount Waterproof Connector 14AWG


Automotive 4 Pin Panel Mount Connector

Product Description

M16 ip68 waterproof automotive connector 2 3 4 5 6 7 8 9 10 12 pin front panel mount for led light

Product Description:

Model number:M16
Connector Body:Nylon(PA 66)+GF
Sealing:Silica Gel
Contact:Brass with gold plated
Mating style:Thread
Temperature Rating:-40°C~+105°C
Current rating:10A
Voltage rating:250V
Waterproof Rating:IP68/IP67
Contact resistance:≦20MΩ
Insulation resistance:1000MΩ at DC500V
Breakdown voltage:1.5KV/1 minute
Cable Max OD:8.0mm


  • 1. Waterproof Circular Connectors
    2. Connecting everything perfectly
    3. 10A Max , IP67 protection level
    4. 2-8pin available
    5. Approved by UL,CE,TUV and RoHS
    6. Push locking structure
    7. 3 years warranty
    8. Long service life & easy to assemble

Technical Parameters:

Rated Voltage 300V
Rated Current 2A~10A
Certificate CE, RoHS,IP68
Withstand Voltage 1500V AC/minute
Contact material Brass with gold plated
Shell Material Nylon PA66
Termination Solder with wire
Locking nut Auto locking system
Wire OD 7.6mm
Protection Level IP68
Product Keywords M16 waterproof connector, push pull connector, waterproof power cable connector, auto lock waterproof connector, quick connector



Outdoor Decoration, LED lights,Vehicles,Light sensors,Infrared sensors,Water filters

Waterproof connector, as the name suggests, is a waterproof plug, but waterproof plug in addition to whether the difference between waterproof, there is a main difference is that ordinary plugs are generally composed of plugs and sockets, plugs and plug generally waterproof plug, that is We often call the waterproof male and female plugs, connected together to form a complete set of waterproof plugs, also known as waterproof connector, is a product of two different titles, like a bicycle or bike.

Automotive Panel Mount Waterproof Connector 0

Product advantages:

1.UV resistant: It can be used outdoor for 24h.

2.Good temperature endurance: Its temperature range is -40°C~+105°C. Our connector can be used outdoor during harsh winter or sweat summer.

3.Heat-proof and cold-proof: good nylon(PA 66)+GF material ensure your equipment to work perfectly free from influence of heat and coldness.

4.Anti-sway test approved.

5.Our connectors get public-recognized certifications: UL ROHS CE TUV CQC TS16949 ISO9001 ISO14001

6.We have got REACH certification. Environmental connectors make you mind assured.

7.Strict test procedure: every product will be tested by machine. We make sure its good quality before delivery.

Why choose us:

(1). We are China leading waterproof connectors manufacturer.

(2). 100% QC inspection before delivery.

(3). Best Quality& Best Service with a relative low price.

(4). Alibaba assessed&15 years of experience.

(5). Advanced production equipment&strong technical strength ensure high-quality and creative products.



1.Q:Are you a factory or trading company?
A: We are a factory. Located in Longda Industrial Park,Baoan District,Shenzhen,China

2.Q:How to buy your products?
A:You need to do as followings before you ask for a quotation;
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and Material.

3.Q:How can I get samples?
A: We would love to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once. (sometimes we charges for samples)

4.Q:How many materials you can provide?
A:There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.

5.Q:How does your factory do regarding quality control?
A:Quality is priority. Jnicon people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained UL, TUV, AWG, RosH, CE and many more.

6.Q:Can you give me some advices on how to buy the Led wire waterproof connector ?
A:It's my pleasure to help you first of all.If you are interested in our products,The best way is that you can make a simple drawing to me with a product picture,Then I will give advice for you.If you have any inquiry,please feel free to ask us and we'll try our best to help you!

7.Q:What if I need the products have some differences on specification from yours?
A:Any requirement from customers will be considered since we stick customer service to the centre.The products you looking for can be customized by our professional R&D team.What's more,it's honored for us to offer you samples. By the way,samples will be free of charge while you bear the freight.

8.Q:How to contact with you?
A:Please give me email, So I can catch your problem,and solve it in a short time.if you have any question please feel free to let me know
