Nylon LED Waterproof Connector

Nylon LED Waterproof Connector

Product Details:

Place of Origin: China
Brand Name: Xiangqian
Certification: RoHS
Model Number: M16 Screw Type Connector

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: Negotiable
Packaging Details: 450*320*280
Delivery Time: 10-15 days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/days
Get Best Price Contact Now

Detail Information

Connector Color: Black Connector Length: Customized
Connector Type: IP68 Contact Resistance: 20mΩ Max
Current Rating: 15A Insulation Resistance: 1000MΩ
Material: Copper Number Of Contacts: 2-5
Product Name: LED Waterproof Connector Temperature Range: -40℃ To +105℃
Voltage Rating: 300V Wire Gauge: 22-14 AWG
Withstanding Voltage: 1500V AC/minute
High Light:

Nylon LED Waterproof Connector


LED Waterproof Connector 300V


Nylon 3 Pin Circular Connector

Product Description

LED Waterproof Connector M16 Screw Type IP68 Assembly Plug Black Nylon Waterproof Connectors
Detailed Product Description
Name: Small Circular Connectors Color: Black Blue
Contact Pin: 3Pin Material: PA66
Protection Level: IP68 Feature: Waterproof
High Light:

M16 Sealed Waterproof Circular Connectors


Small Circular Connectors 300V 10A


PA66 Small Circular Connectors



10A 300V Small Waterproof Circular Connectors , M16 Waterproof Connector Plug


Description of M16 Waterproof Connector Plug

1) Advanced structure: Self-locking

2) Mutiple pin:2,3,4,5,6,7,8,9 to 22 pins are optional

3) Contact pin: Screw terminal and soldering terminal available

4) Assembly: wire to wire type(no cable),wire to wire by overmolding, wire to board

5) Colours:Black,blue,white and yellow color supported

6) Cable length:Different cable length could be customized



Technical Parameters
Contact Resistance 10 mΩ max
Insulation Structure 500 MΩ at 500VDC
Operating Temperature -40°C ~ +105°C
IP Class IP67 (1m / 30min)
Mold Material PA66
Contact/Terminal Material Gold Plated Brass
Seal Material Silicone

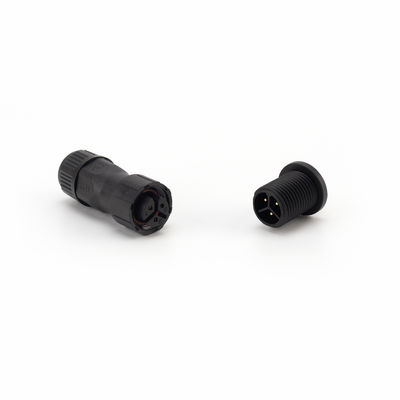

M16 3pin male plug female socket is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.


Application industries

  • Communications Application
  • product coding machines
  • inventory product coding
  • inkjet systems
  • Solar System
  • industrial inkjet equipment
  • Electric power equipment
  • Laboratory forensic&pathology equipment
  • Communications equipment
  • Heavy machinery


Nylon LED Waterproof Connector 0


Operation Parameters
Voltage Rating 300VAC max
Current Rating 10A max
Min Wire Size OD 3.0mm ~ 5.0mm
Max Wire Size OD 6.5mm ~ 9.0mm
Max.Cable Cross Section Area 0.5mm2 ~ 1.5mm2


Our Advantages

1. 100% high quality, all failed parts get free warranty within 30 days after received.


2. Accept 10 years warranty upon customer requirement.


3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time


4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.


5. Unique designed package for you can be provided upon customer requirement.


6. Special feature and service can be provided upon requirement.





1. Q: What type waterproof connector do you have?
A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.

2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way

3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
