Shenzhen Realeader Industrial Co., Ltd.
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | Realeader |
| Certification: | UL/CE/CQC |
| Model Number: | DR-D15 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons |
| Payment Terms: | Western Union, T/T,, MoneyGram,Paypal,, L/C |
| Supply Ability: | 100000pcs/month |
| Product Name: | Waterproof Cable Connectors | Contact Cores: | 2pin/3pin |
|---|---|---|---|
| IP Level: | IP68 | Male Pin Diameter: | φ1.5mm |
| Rated Current: | 10-12A | Application: | Automotive |
| High Light: | M15 M16 Waterproof Cable Connector,CQC Waterproof Cable Connector,CQC Outdoor Line Connector |
||

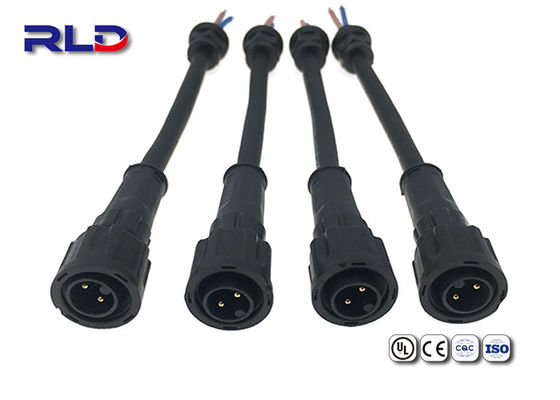

M12 M15 M16 Waterproof Cable Connector Outdoor Line Connector
Quick Detail Of Waterproof Cable Connectors
Feature Of Waterproof Cable Connectors
1. Nut type docking assembly, simple to use and convenient installation;
2. The standard products of National Semiconductor Industry Association CSA016;
3. The material of products in nylon fiber grealy improves product durability and safety;
4. The male plug can match the product DR-T08 of our company;
5. Mainly used for LED lighting power cables' connection and any other power cables.
Mechanical Property
| Pins Number | 2Pin / 3Pin |
| Male Pin Diameter | φ1.5mm |
| Male / Female Contact Material | Copper/Copper Alloy (Gold Plating) |
| Over-Mold Material | PA66 |
| Insulator Material | PA66+30% fiber |
| Wire Gauge | 20AWG-14AWG |
| Cable Diameter | φ4.0-φ9.0 |
| Protection Degree | IP68 |
| Operating Temperature | -40℃-125℃ |
| Plug / unplug Durability | 1500 |
Electrical Property
| Rated Current | 10-12A |
| Rated Voltage | 250V |
| Test Voltage | 1000-1500V |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 200MΩ |
Technical date
| Contact Cores | 2Pin/3Pin |
| Rated Current | 10-12A |
| Rated Voltage | 250V AC |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 200MΩ |
| Protection Level | IP68 |
| Cable Specifications | <1.5mm2 |
| Cable Range | 0-9mm |
Application Of Waterproof Cable Connectors
1. Electric Bicycles
2. Ebike Motor
3. E-Scooter
4. LED Street Light
Our Advantages
1. Customized Waterproof Connectors : For all connectors we provide OEM & ODM service.
2. Fast Delivery : 1-3 working day for sample ; 5-7 working days for bulk order.
3. Factory direct support : Realeader foucs on Waterproof Connectors for over 13years.
Application of Waterproof Cable Connectors
D13 Specification.pdf
