Shenzhen Realeader Industrial Co., Ltd.
Sales & Support:

|
| Place of Origin: | China |
| Brand Name: | Realeader |
| Certification: | ISO9001 |
| Model Number: | DR-C03 |
| Minimum Order Quantity: | 10pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 25*20*16CM |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram , Paypal |
| Supply Ability: | 100000pieces/Month |
| Product: | Led Connectors | Contact Cores: | 2PIN/3PIN/4PIN |
|---|---|---|---|
| Over-Mold Material: | PA66 | Certificate: | ISO9001 |
| Male Size: | Φ19*47.3mm | Female Size: | Φ19*47.5mm |
| High Light: | circular plastic connectors,circular electrical connectors |
||
Product introduction

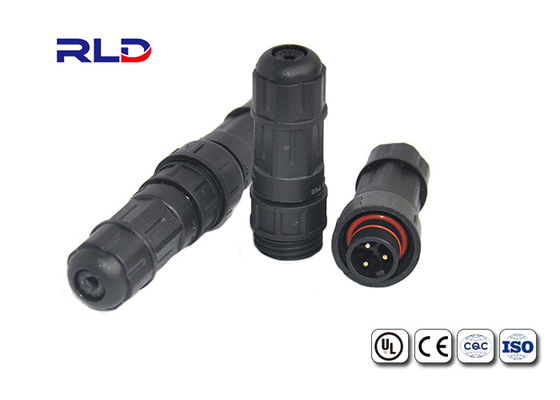

Our Electrical Waterproof Circular Connectors has quick lock and screw threaded docking assembly. It is simple to use and convenient installation. The Circular Connectors integratcurrent and signal transmission in one of the multifunctional integrated circular connector.
The material of products in nylon fiber grealy improves product durability and safety.The pins with gold-plated ensure the conducting performance's stability and security. With Combined structure, the connector can be parted into different components. Customers can just purchase the connector, then assemble and weld it according to the demand. This Male Female Connector is mainly used for outdoor display screens and other upscale products.
Features
Other Parameters
Male Size : Φ19*47.3mm
Female Size : Φ19*47.5mm
Contact Cores : 2 Pin ~ 4 Pin
Male Pin Diameter : Φ1.5mm
Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)
Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)
Parameters
| Pins Number | 2pin/3pin |
| Rated Current | 20A |
| Rated Voltage | 250V AC |
| Contact Resistance | 10mΩ |
| Insulation Resistance | 200MΩ |
| IP-Code | IP68 |
| Cable Specification | 1.5mm2 |
| Cable Range | 6-10mm |
FAQ
Q1 : Can I have a sample for test ?
Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .
Q2 : How about the lead time ?
Sample order need 3-5 working days , mess order need 15-20 working days .
Q3 : Do you have certificates about the waterproof connectors ?
Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .
Q4 : What payment can you accept ?
We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .
Q5 : Is that OK to print our Logo on your product and package ?
Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .
Q6 : Are you a factory ? Where is your factory ?
Yes , we are a factory , we located in Shenzhen .
Q7 : Do you accept OEM & ODM service ?
Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.
Q8 : How much does it cost to my country ?
The freight will be given by fright company based on your Gross weight and CBM .
Q9 : Can I order 100m cable for 1pc waterproof connector ?
Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .
