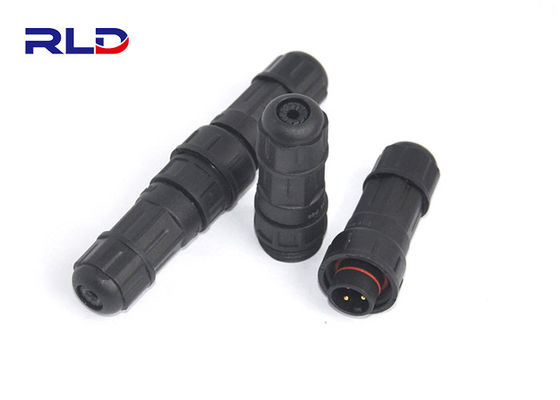

Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire

Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire

Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire
Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire
Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire
Product Details:
Place of Origin: China
Brand Name: Realeader
Certification: ISO9001
Model Number: DR-C03
Payment & Shipping Terms:
Minimum Order Quantity: 10pieces
Price: Negotiable
Packaging Details: 25*20*16CM
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram , Paypal
Supply Ability: 100000pieces/Month
Contact Now
Detailed Product Description
Product: Waterproof Circular Connector Contact Cores: 2 Pin ~ 4 Pin
Over-Mold Material: PA66 Certificate: CE
Cable Specification: 1.5mm2 Wire Specification: 28AWG-14AWG
High Light:

circular plastic connectors

,

circular power connector



Eco - Friendly Waterproof Wire Cable Connectors Electrical 3 Pole 4 Pole IP68

Features



• Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.

• Protect from dust and water during immersion, resistant to many oils and chemicals.

Easiy connected to proximity switch,flow monitoring devices and field bus components sensor devices and actuator devices

Ip67 Ip68 dc connector for led light meets all the requirements of sensor devices and actuator devices for automation application.

100% new material, high quality parts, strictly QC standard according to international customers.






Other Parameters



Male Size : Φ19*47.3mm

Female Size : Φ19*47.5mm

Contact Cores : 2 Pin ~ 4 Pin

Male Pin Diameter : Φ1.5mm

Male Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

Female Pin Material : Copper/Copper Alloy (Gold plating/Nickel plating)

Over-Mold Material : PA66

Insulator Material : PA66+30% fibre

Wire Specifications : 28AWG---14AWG

Wire Diameter : Φ3.5-Φ7.2

Protective Level : IP68

Temperature Environment : -40℃ ~ +125℃

Plug/Unplug Durability : 1000 times





Parameters



Pins Number 2pin/3pin
Rated Current 20A
Rated Voltage 250V AC
Contact Resistance 10mΩ
Insulation Resistance 200MΩ
IP-Code IP68
Cable Specification 1.5mm2
Cable Range 6-10mm





FAQ



Q1 : Can I have a sample for test ?

        Yes , Sample order is welcomed , the lead time will be 3-5 working days acoording to your request .



Q2 : How about the lead time ?

        Sample order need 3-5 working days , mess order need 15-20 working days .



Q3 : Do you have certificates about the waterproof connectors ?

        Yes , we have got UL for DL-A02 series , CE for all waterproof connectors .



Q4 : What payment can you accept ?

        We are appreciate that you can pay via T/T , and of course you can pay by L/C , Western Union , Paypal .



Q5 : Is that OK to print our Logo on your product and package ?

        Yes , it is OK . Before our production please inform us formally , and confirm the design firstly based on the sample that we send to you .



Q6 : Are you a factory ? Where is your factory ?

        Yes , we are a factory , we located in Shenzhen .



Q7 : Do you accept OEM & ODM service ?

        Yes , we accept OEM service. We will produce according to your requirment .ODM are also welcomed . Our engineers have more than 10 years experience for waterproof connector industry . we provide our best service for your refer.



Q8 : How much does it cost to my country ?

       The freight will be given by fright company based on your Gross weight and CBM .



Q9 : Can I order 100m cable for 1pc waterproof connector ?

        Yes , for waterproof connector ,we can connect with 10cm , 1m , 2m ,5m , 10m , 50m , 100m and so on , will produce according to your detailed requirement .





Product Details





Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire 0

Ecofriendly Waterproof Wire Connectors 4 Pole Explosion Proof 28AWG-14AWG Wire 1
